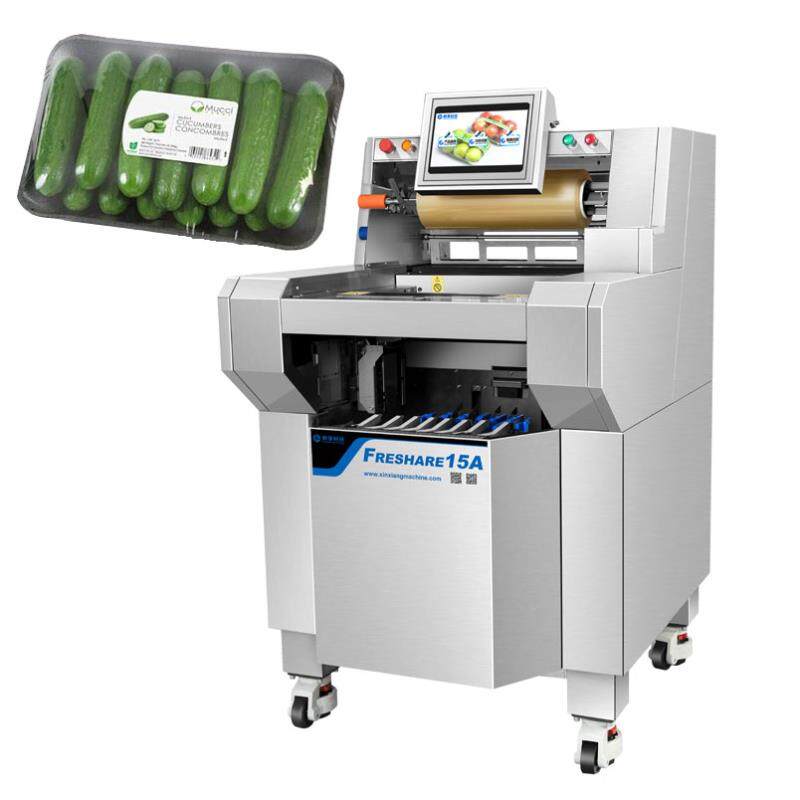

vegetable Cling film packaging machine

clipping film vegetable & fruit automatic packaging Machin can pack products with trays and products without trays, such as cabbage, broccoli, cucumbers,fruits etc. that need to be naked. It has multiple functions and is indeed the first choice for store packaging!



CONTACT US

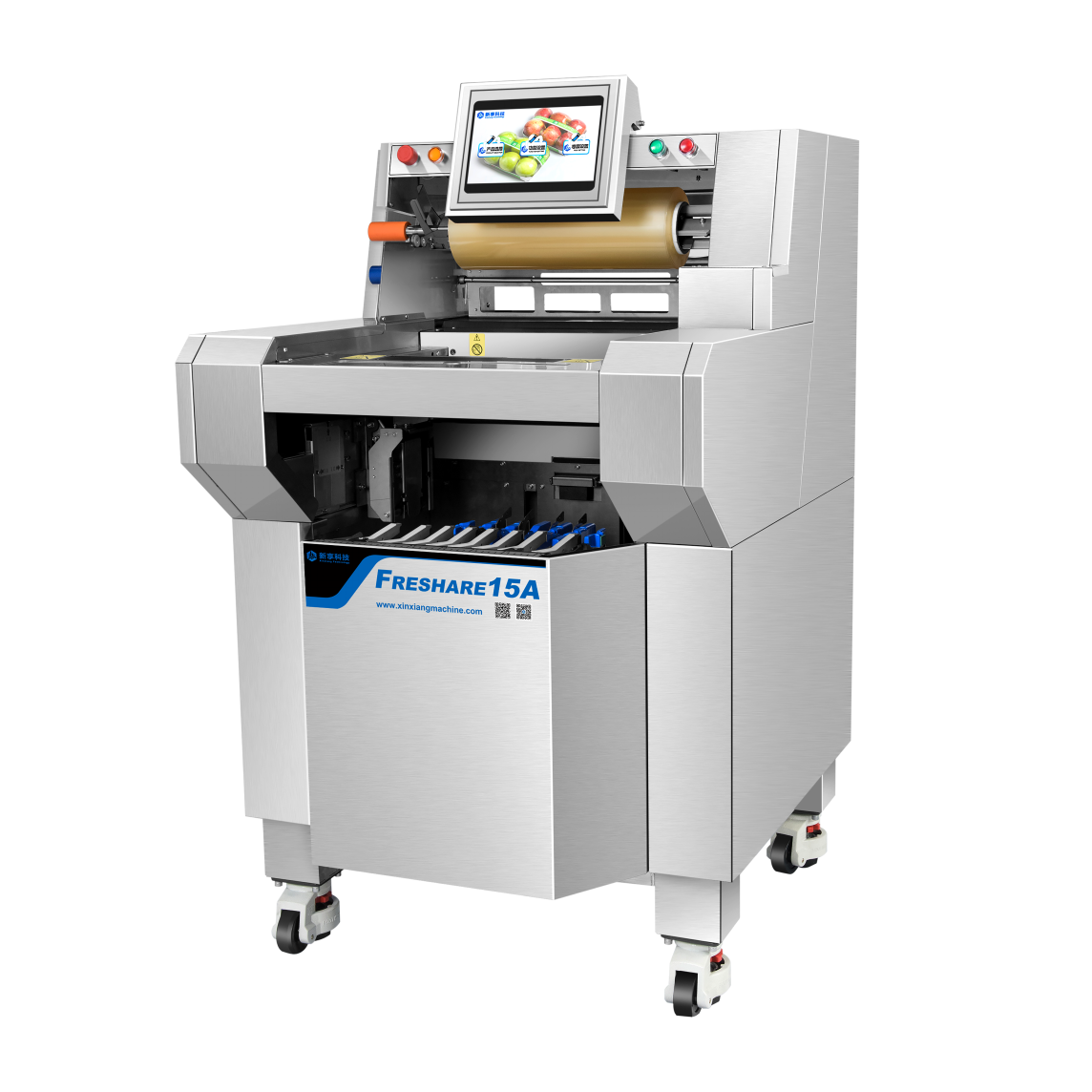

 1.vegetable Cling film packaging machine Technical  parameter




Basics

model

Freshare15A

type



Semi-automatic stretch film wrapper

Dimensions(Length* width *height)

840*888*1415mm

Configuration

Display

10.2-inch TFT color touch screen (screen ratio 16:9))

Display resolution

1024*699

Power Supply

220v/110v

Power Consumption

1860W

cylinder

SMC CORPORATION

Electric appliance

Schneider

PLC

Panasonic

Weighing component

TOLEDO/ other

Label printing

Zebra/other

Frame material

304 stainless steel

Working parameters

Packing speed

15/min   15 packs / min

Package length

80~350mm

Package width

80~230mm

Package height

10~150mm

Package weight

150g~3kg

Film width

350~500mm















2.vegetable Cling film packaging machine Operation process

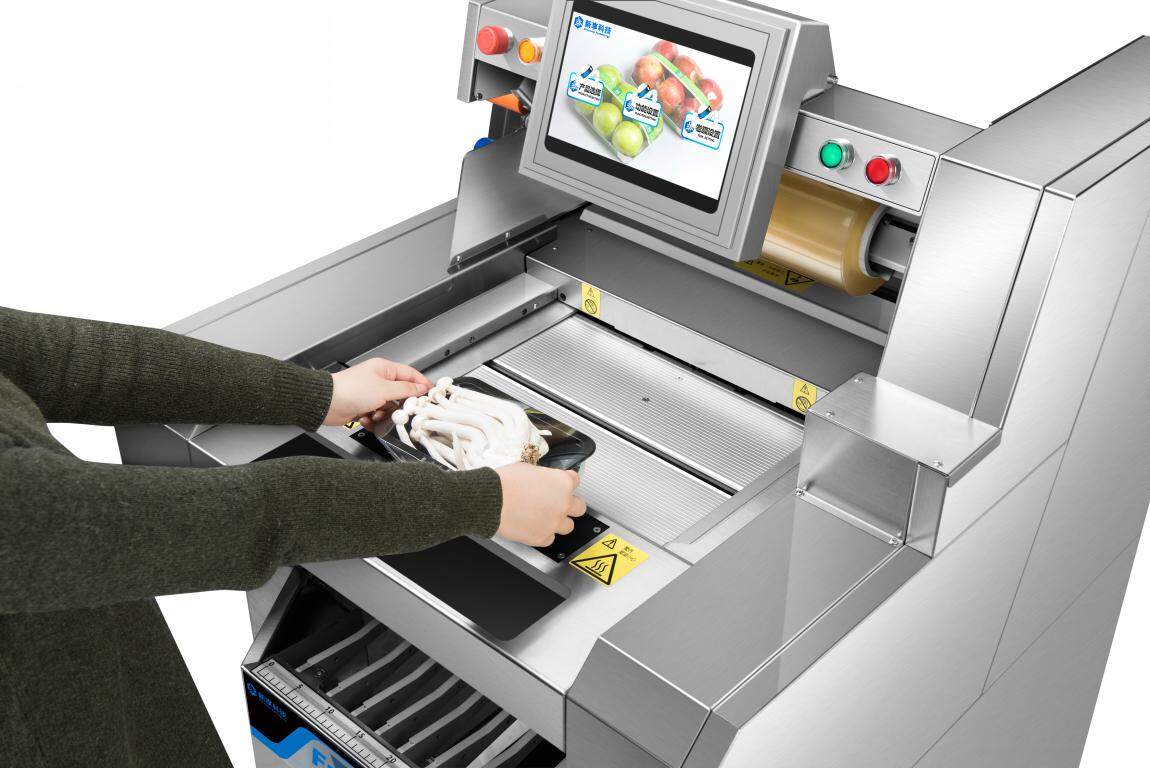

      A.      Semi-automatic packaging machine operation process:

1.  Select the appropriate packaging data (pre-set storage)

2.  Place the package in the tray position and the machine will automatically weigh

3.  Remove the packaged product and gently press the heating plate

4.  Paste the printed label onto the packaged item manually(if label printing is optional)





3.vegetable Cling film packaging machine Features

Available with or without tray

The occupied space is small, just plug it in and you can use it.

It can be connected to the conveyor line and the front and rear processes are semi-automatically connected (we can provide all the matching products of the conveyor line).

Low noise production

Continuous or intermittent production

Applicable to all common machine film (PVC, PE, PO), which can save costs
