Auto Food Feeding Packaging Machine Line
Automated Feeding &packaging producton line Suitable for packaging various kinds of regular objects like : Food : like Biscuits, Pies, Chocolates, Bread, Instant noodles, Cup Cakes, Energy bar, Ice cream bar,etc ... Daily Appliances : Soap bar ,Sponge, Tissue etc ... Medical Product: Medical marks

CONTACT US

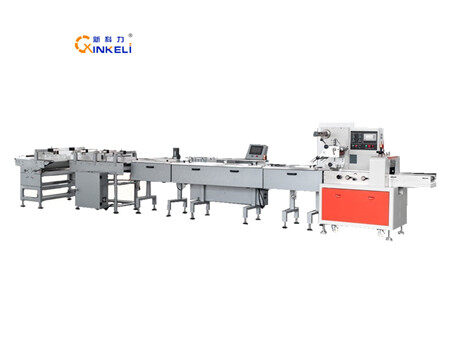

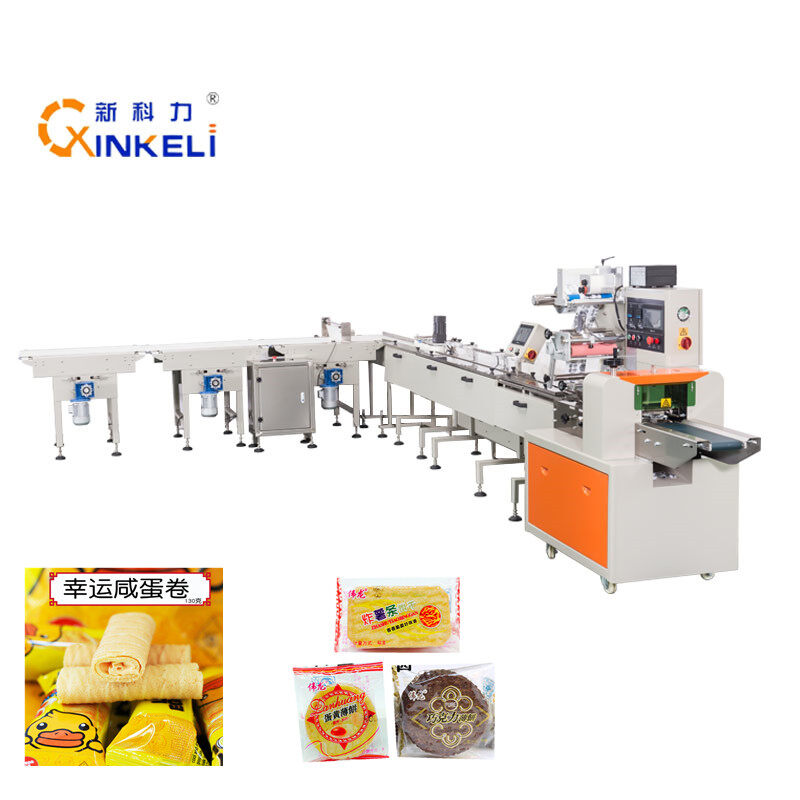

Auto Food Feeding Packaging Machine Line

Main performance and structure features

1: Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.

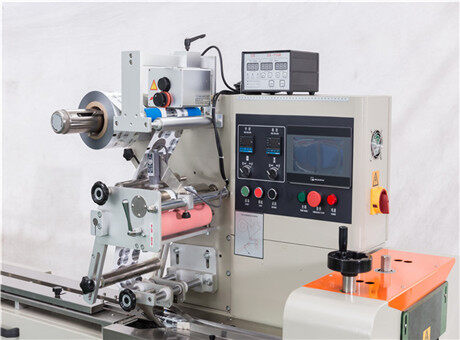

2: human-machine operation, convenient and quick parameter setting.

3: Self diagnosis failure function, clear failure display.

4: High sensitivity optical electric color mark tracking &digital input cut position which makes the sealing&cutting more accurate.

5: Separate PID control to temperature, suitable for various packing materials.

6: Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7: Simple driving system, reliable working, convenient maintenance.

8: All the controls are achieved by software, convenient for function adjusting and upgrading.



Auto Food Feeding Packaging Machine Line Advantages:

1. This feeding line  automatic controlled by the same control system, and the speed is implemented with the linkage mechanism: when end feed materail not enough ,the front feed will replenishing material very fast ,The end feed is full, the front feed will be slowed;When the back feed stopping, (packaging machine) stops, the front feed stops.also

2. Reduce the stop frequency of the packaging machine and ensure the quality of the product sealing, which is suitable for the products with high requirements.

Specification of Auto Food Feeding Packaging Machine Line

item

Kl-100

Feeding speed

40-180

Product length

20-150mm

Product width

20-80mm

Product height

5-50mm

powder

5.7KW

Machine weight

1400kg

Size of machine

7500*950*1200mm

Machine noise

≤60

Voltage

220V 50HZ

Air pressure

0.5-0.7MPa
