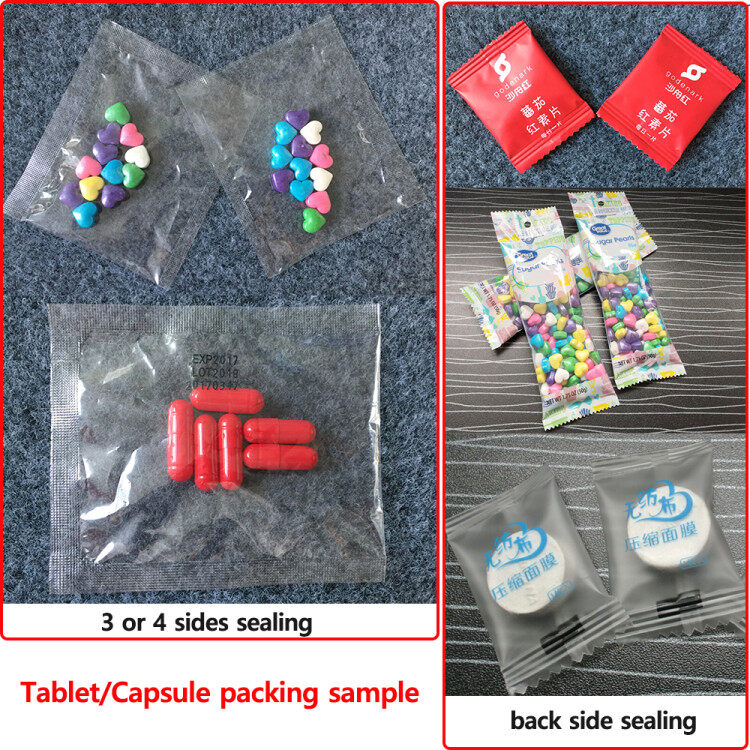

Bag type : 4 sides sealing bag,3 sides sealing bag,back side sealing
Each bag capacity: 1-20pcs
Product Description tablet counting and packing machine Applicable scope:
1. Be Suitable for all kinds of industries like food; medicine; cosmetic; industries

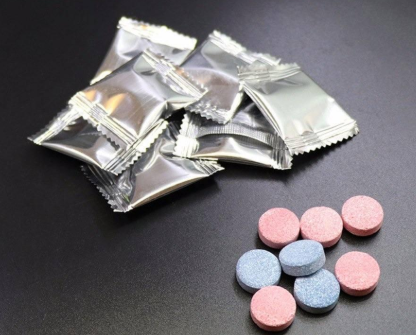

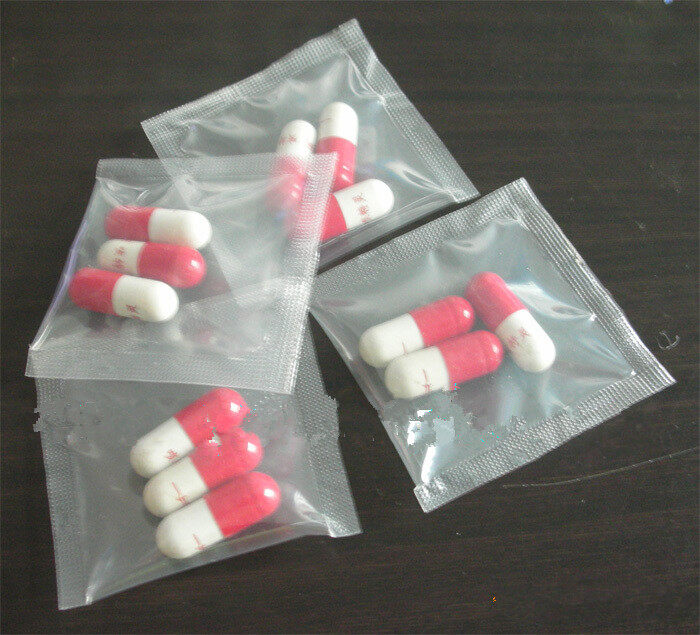

2. The products that can be packed, are like candy, bean, pearl, tablets, medical pill and chewing gum.
capsule Sachat Bag Packaging Machine Function:
The machine could automatically complete all tasks of measuring, bag making, filling, sealing, printing batch No. (a code marker could be fitted), cutting, easy-to-tear cutting mouth and counting etc.;
tablet counting and packing machine Technology feature:
|
Model |
kl-160P |
|
Name |

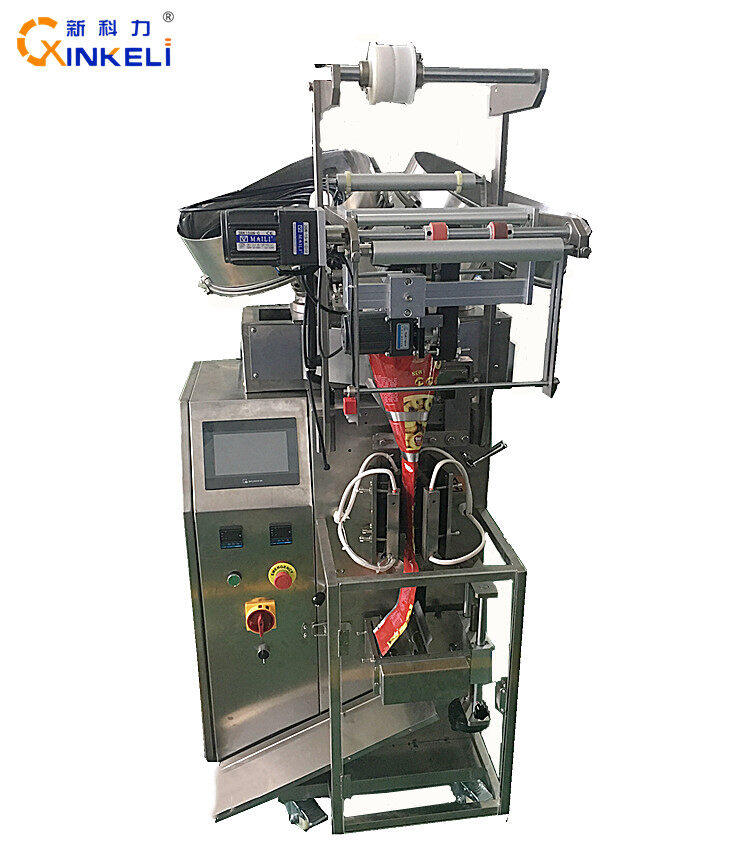

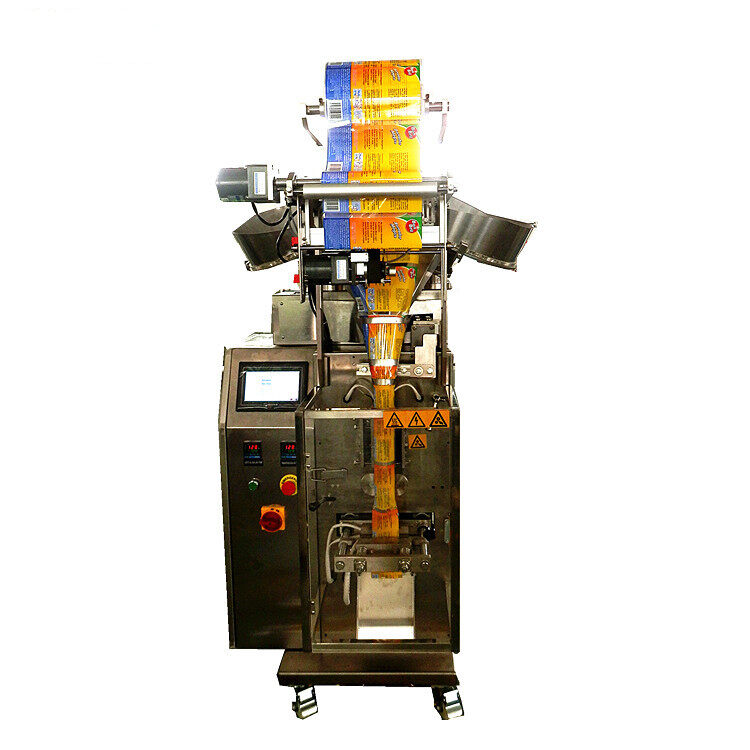

Automatic Tablet Packing Machine |
|
Bag’s size |
Width:30-100mm ; Length:30-160mm |
|
Film’s Max Width |
220mm |
|
Bag’ Type |
3 Sides Sealing back side sealing |
|
Capacity |
30-75 Bags /min |
|
Measuring Mode |
Tablet Counter |
|
Control Style |
Imported PLC control System+ English operation screen |
|
Power |
1.2KW |
|
Power Supply |
AC220v single-phase 50Hz |
|
Appearance |
Stainless Steel 304 |
|
Weight |
Net Weight :185Kg Gross Weight: 220Kg |
|
Dimension |
L: 700× W:600× H:1750mm |
|
Packing Film |
Composite or laminated film that can be heat sealed,such as paper/polyethylene; cellophane/ polyethylene; plated aluminum/ polyethylene; BOPP /polyethylene ; nylon / polyethylene |
Advantages:
1.Food grade all stainless steel struction is compact and stable performance.
2.PLC touch screen,step motor control,easy and accurate to set the bag length.
3.Rolled cup filler device can adjust packaging capacity during the running,improve productivity.
4.The machine completes the whole procedure of filling,bagging,date printing,charging(exhausting) automatic.
5.Optional device:Linked-bags device,date printer device,punching hole device,gas filling device.etc
