cake wrapping machine, cake packing machine,cake packaging machine,moon cake wrapping machine,vietnamese mung bean cake wrapping machine,
cup cake packaging machine
.jpg)

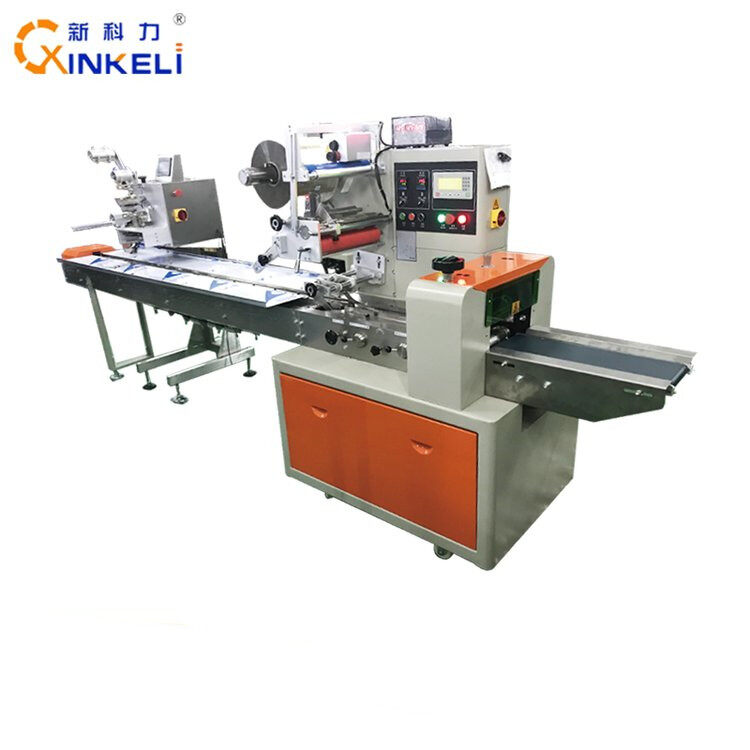

Automatic Flow Pack/Packaging Machine / Baby Diaper Machine
Dual frequency conversion control, Bag length can be set and cut in one step, saving time and film.
Interface features easy and quick setting and operation.
Self failure diagnosis, clear failure display.
High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
Temperature independent PID control, more suitable for packaging different materials.
Positioned stop function, without sticking knife or wasting film.
Simple driving system, reliable working, convenient maintenance.
All control is realized through software, easy for function adjusting and technical upgrade.
| Type | KL-250 | kl-320 | kl-350 | kl-400 |
| Film width | Max.250mm | Max.320mm | Max.350mm | Max.400mm |
| Bag Length | 65-280MM | 65-330MM | 65-330MM | 150-400MM |
| Bag Wide | 30-110mm | 50-150mm | 50-160mm | 50-180mm |
| Products High | Max.55mm | Max.55mm | Max.60mm | Max.65mm |
| Packing Speed | 40-330bag/min | 40-230bag/min | 40-180bag/min | 30-150bag/min |
| Powder | 220v 50/60HZ 2.4kw |
200v 50/60HZ 2.6kw |
220v 50/60Hz 2.6kw |
220v 50/60HZ 2.8kw |
| Machine Size(mm) | 3770x680x1420 | 3770x720x1420 | 4020x770x1420 | 4020x770x1420 |
| Machine weighing | 440kg | 480kg | 500kg | 550kg |
Uptional device:
