Item
|

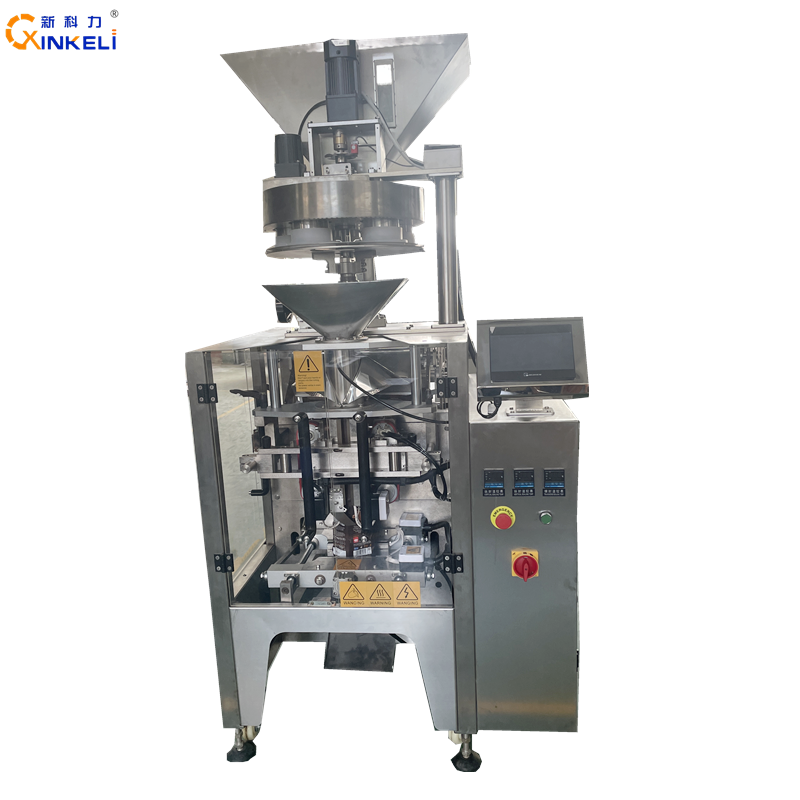

Automatic Big Volume Vacuum Packing Machine for Granules
|
|
Model
|
KL-420B
|
|
Sealing Method
|
heat sealing
|
|
Filling System
|
Single bucket volume cups
|
|
Packing Speed
|
8-30 bags/min
|
|
Bag Size
|
Bag Length 40-300mm, bag Width 30-200mm
|
|
Filling range
|
Packing volume can be adjusted, depends on your packing variety and packing volume
|
|
Bag Type
|
back sealed bags,
|
|
Cutting type
|
wave cutting
|
|
Date printer
|
Optional to choose
|
|
Control system
|
Mitsubishi PLC+ screen
|
|
Air Consumpion
|
≥0.8Mpa, 0.6m³/min
|
|
Power
|
380V, 220V, 50/60Hz, 3 phase
|
|
Overall Denmensions
|
L1330mm*W1140mm*H1800 (mm)
|
