pouch multihead weigher packing machine

pouch multihead weigher packing machine is widely used in the food industry,such as snack food and sea food.This automatic machine adopts Chinese and English touch screen display, the operation is intuitive and simple, PLC computer control system, the operation is more stable, can adjust any parameters without stopping, can store ten sets of parameters, replace the variety more accurately, adopt double servo motor control, and the film is more accurate and faster.

CONTACT US

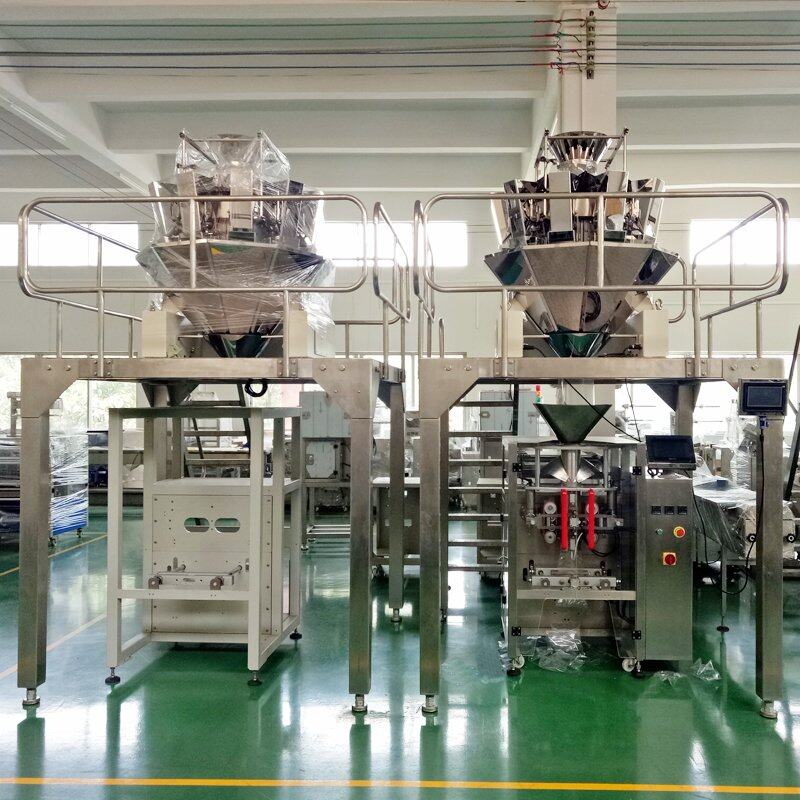

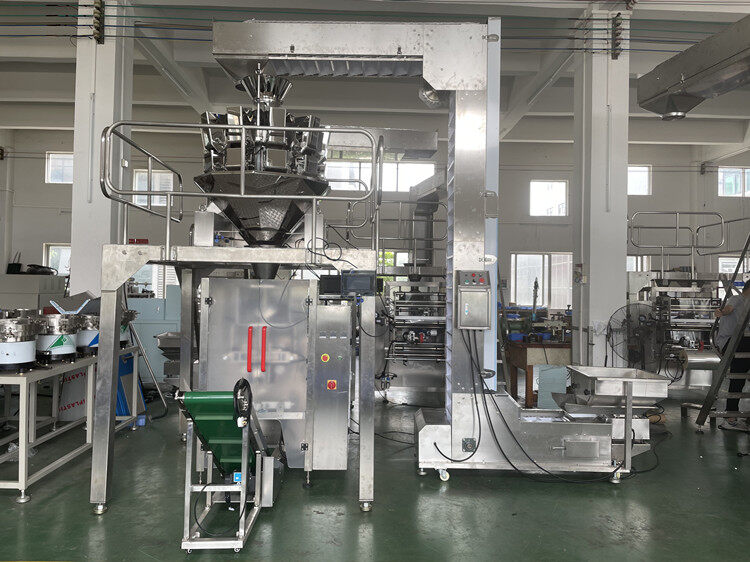

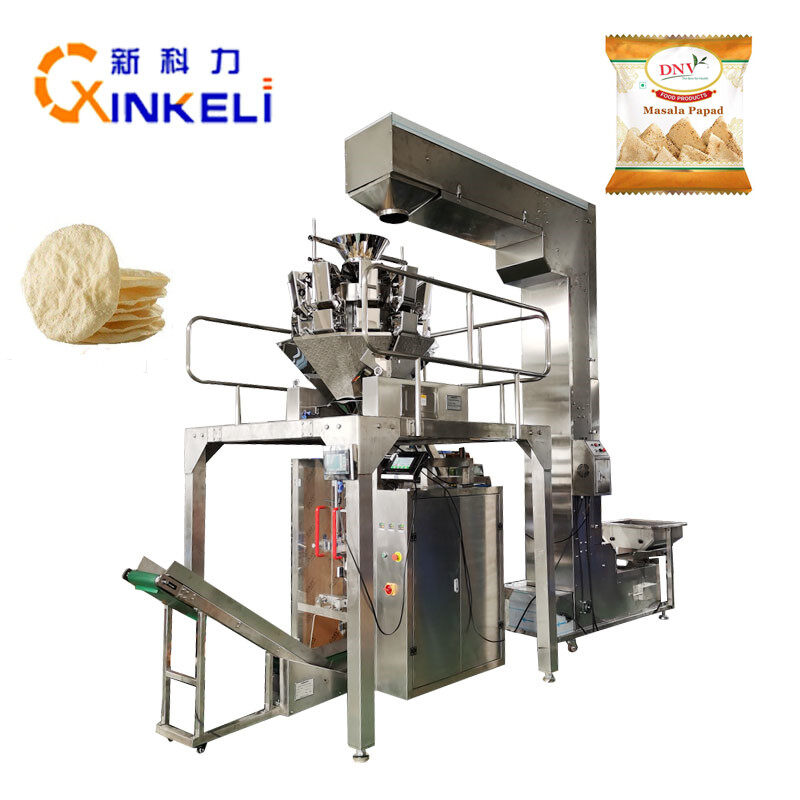

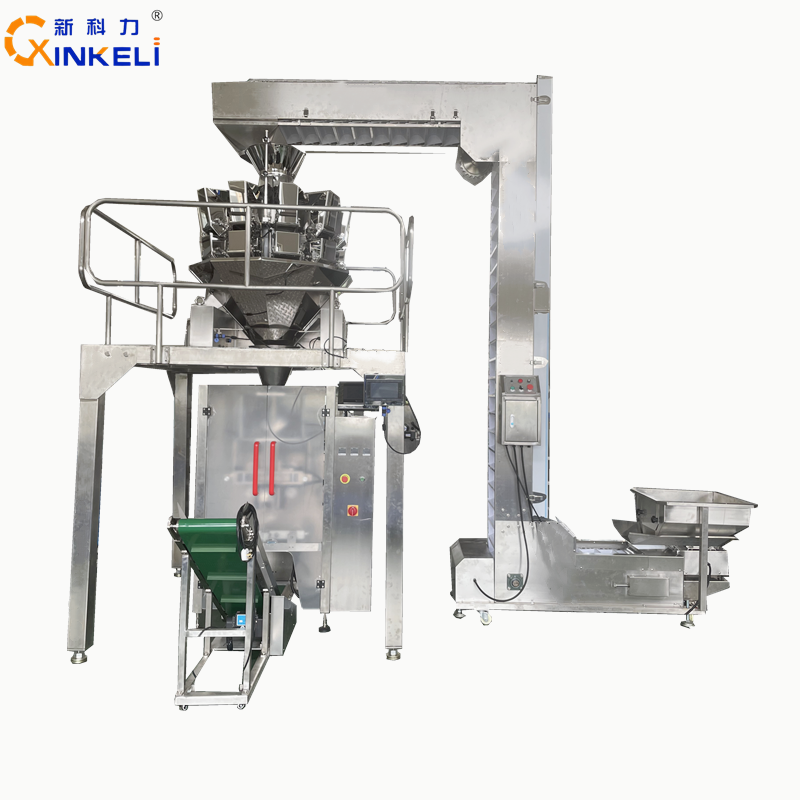

Whole Packaging System

1. Vertical Form Fill Seal Bag-maker
2. 10 heads multihead weigher
3. Z type material conveyor
4. Platform
5. Finished product conveyor

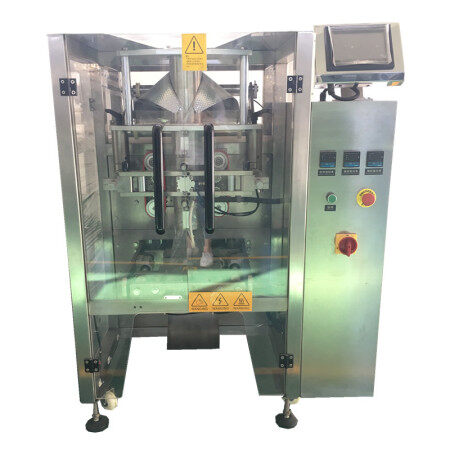

Kl-520 packing machine






Feature :
The system can finish automatically all processes ,i.e Feeding, measuring, filling and bag making, printing date, product output.
The machine structure is compact, rational, stable performance, easy operation and maintenance.
The complete set of the machine is featured with fair price, stable performance.
The machine adopts independent mixing system ,is able to mix uniformly the material .





Tech data :

KL-520 main packing machine

Air consumption :2.5m3/min 6kg/cm2
Max. Film width :520mm
Bag length :80~350mm
Bag width :80-250mm
Max. extend diameter of coiled material Max.300mm
Packing speed :20-60bag/min
Packing thickness: 0.04-0.08mm
Power supply specification :220V,50/60Hz,2.2kw
Total weight of machine :450kg
Machine size (L)1400*(W)970*(H)1600mm

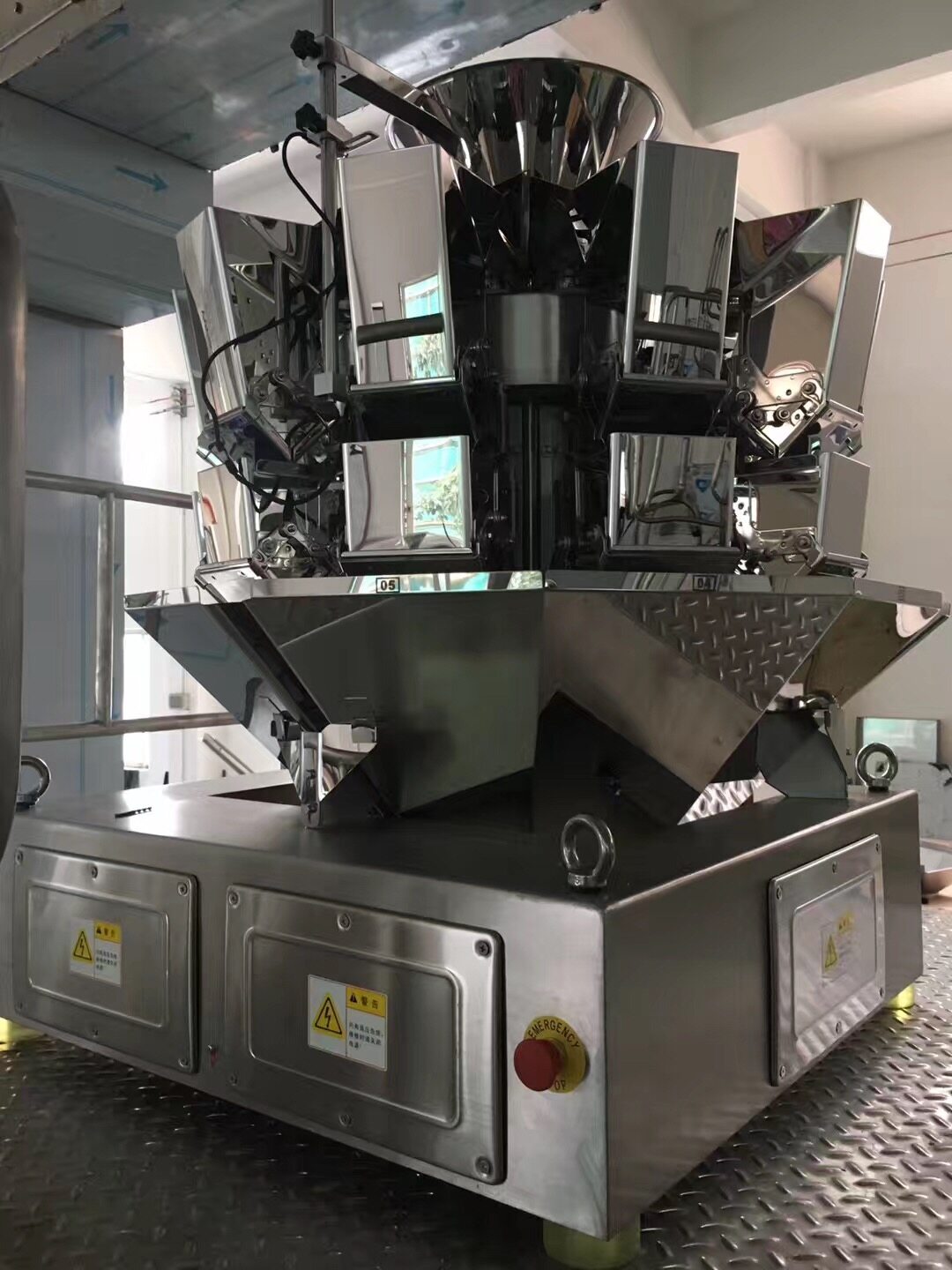

10 head weigher

Feature

  1. With instantaneous reaching of correct calculatimgby hig-precision load cell.
  2. With quiet running , stable action , and long life by adopting stepmotor.
  3. The open & close speed of the material bucket cover can finely regulated according to the features of the measured material to prevent crashing and damage .
  4. Neatness and hygiene by using stainless steel as the material of its parts .
  5. With excellent compatibility and easy using with other packing equipment .



Application :

Suitable for packing fragile bulk material with irregular shapes and requiring high measuring accuracy, such as :puffed food, shrimp strip, potato chips, banana chips, apple flakes, crispy rice, biscuit, peanut, cooked seeds, sweets etc.

Tech data :

Item No.

10 head scale

Max weight

1000g

Measuring range

10-1000g

Accuracy

±0.3-1.5g

Weighing accuracy

Max 3000cc

Weighing speed

60 bags per min

Types of weight setting

50 types

Control section

Fluorescent light display tube (256 X 64 )

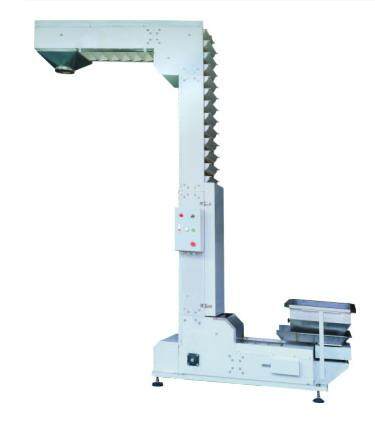

Z type bucket chain material elevator

  1. The elevator and electronic metering scale shall be used together . Control circuit is used to control the position of the material , realizing auto feeding and stopping function .
  2. The elevator can be made of stainless steel and carbon steel according to the customer choice .

Application :

Suitable for the lifting of frangible and non-frangible material , such as potato slice , prawn cracker , crispy rice , metals , medicines , etc .

Tech data :

Item No.

Z type bucket chain material elevator

Conveying capacity

3-6 m3/ h

Voltage

380V

Gross weight

500KG

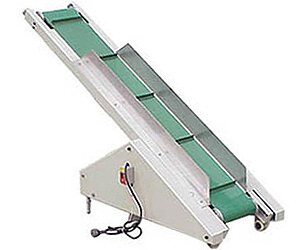

Finished product conveyer

Feature :

  1. This machine adopts imported miniature motor and is featured with low noise , long service life .
  2. It can transport the finished goods to the platform , reduce waste at packing process .
  3. The packaging machine with work smothly .

Tech data :

Item No.

Finished product conveyor

Conveying capacity

60 bags per min

Voltage

220V

Gross weight

40KG
